Product
OPPENT EVO roller
Excellent positioning accuracy and high safety
EVO roller works with conveyor systems to automate product delivery.
OPPENT EVO roller Family Datasheet
EVOroller™ 1
| DIMENSIONS (LxWxH) | 1400x662x850 mm |
|---|---|
| PAYLOAD | ・Nominal: 150 kg ・Maximum: 180 kg |
| SPEED RANGE | 0,1 m/s – 1 m/s |
| KINEMATICS AND DRIVE | Double Trike Omnidirectional |
| BATTERY | ・LiFePO4 24V 120Ah ・LeadGel 24V 140Ah ・PureLead 24V 120Ah |
| AUTONOMY | ・9 hours ・4 hours ・6 hours |
| LIFT PLATFORM | Powered Roller |
EVOroller™ 2
| DIMENSIONS (LxWxH) | 1400x662x800 mm |
|---|---|
| PAYLOAD | ・Nominal: 2 x 150 kg ・Maximum: 2 x 180 kg |
| SPEED RANGE | 0,1 m/s – 1 m/s |
| KINEMATICS AND DRIVE | Double Trike Omnidirectional |
| BATTERY | ・LiFePO4 24V 120Ah ・LeadGel 24V 280Ah ・PureLead 24V 240Ah |
| AUTONOMY | ・8 hours ・8 hours ・10 hours |
| LIFT PLATFORM | Double Powered Roller |
EVOroller™ 3
| DIMENSIONS (LxWxH) | 1150x625x1340 mm |
|---|---|
| PAYLOAD | ・Nominal: 4 x 60 kg ・Maximum: 4 x 80 kg |
| SPEED RANGE | 0,1 m/s – 1 m/s |
| KINEMATICS AND DRIVE | Diamond Bidirectional |
| BATTERY | ・LiFePO4 24V 60Ah ・PureLead 24V 60Ah |
| AUTONOMY | ・6 hours ・4 hours |
| LIFT PLATFORM | 4x Powered Rollers on two levels |
EVOroller™ 4
| DIMENSIONS (LxWxH) | 1300x900x380 mm |
|---|---|
| PAYLOAD | ・Nominal: 500 kg ・Maximum: 700 kg |
| SPEED RANGE | 0,1 m/s – 1 ,2 m/s |
| KINEMATICS AND DRIVE | Differential Bidirectional |
| BATTERY | ・LiFePO4 24V 120 Ah |
| AUTONOMY | ・8 hours |
| LIFT PLATFORM | Powered Roller |
EVOroller™ 5
| DIMENSIONS (LxWxH) | 2000x1200 mm |
|---|---|
| PAYLOAD | ・Nominal: 2000 kg ・Max: 2500 kg |
| SPEED RANGE | 0,1 m/s – 1,4 m/s |
| KINEMATICS AND DRIVE | Double Trike Omnidirectional |
| BATTERY | ・LiNMC 24V 370 Ah |
| AUTONOMY | ・12 hours |
| LIFT PLATFORM | 8x Powered Rollers on two levels |
EVOroller™ 6
| DIMENSIONS (LxWxH) | 800x600x380 mm |
|---|---|
| PAYLOAD | ・Nominal: 300 kg ・Max: 350 kg |
| SPEED RANGE | 0,1 m/s – 1,5 m/s |
| KINEMATICS AND DRIVE | Differential Bidirectional |
| BATTERY | ・LiFePO4 24V 50 Ah |
| AUTONOMY | ・6 hours |
| LIFT PLATFORM | Powered Roller |

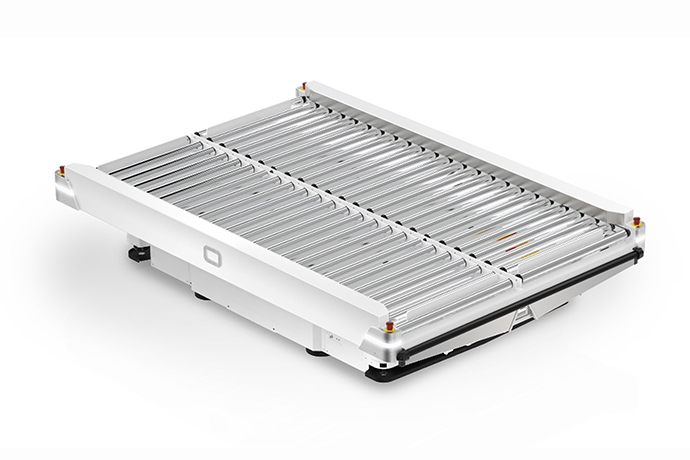

EVOroller™ 7
| DIMENSIONS (LxWxH) | 2980x2014x647 mm |
|---|---|
| PAYLOAD | ・Nominal: 700 kg ・Max: 1000 kg |
| SPEED RANGE | 0,1 m/s – 1 m/s |
| KINEMATICS AND DRIVE | Double Trike Omnidirectional |
| BATTERY | ・LiNMC 24V 370 Ah |
| AUTONOMY | ・14 hours |
| LIFT PLATFORM | Powered Roller |
Common feature
| MINIMUM BENDING RADIUS | The vehicle turns on its vertical axis |
|---|---|
| ACCURACY | X, Y: ± 10 mm - Yaw: ± 1° |
| SAFETY DEVICES | ・2 Sick S300 laser scanner (PLd) ・E-stop button (x2) ・Safety control central unit Sick Flexi (Ple) |
| NAVIGATION | Natural Navigation |
PLiBOT's products enable robots to collaborate and operate simultaneously.
Sales are basically limited to Japan.
