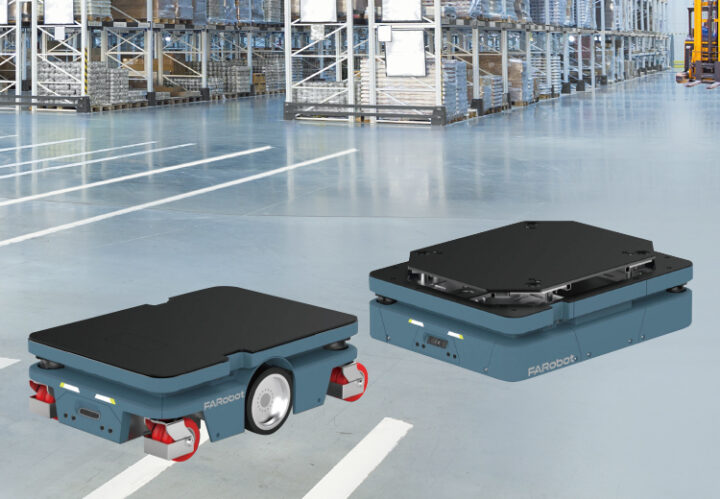

FARobot SMR seriesCompact AMR for clean room
Conveyance
Powerful transfer in a compact housing
A low-profile design with an embedded lift height of less than 272mm provides excellent space efficiency.
In addition, it is powerful enough to overcome 35mm grooves, 20mm steps, and 5% slopes.
-
Base model for top module mounting
Acquired ISO air cleanliness class 3 and can be operated in clean rooms such as semiconductor factories.
It also features 48V/10A and 24V/2A power supplies for the top module, 4 digital I/Os with Modbus communication and M12 Ethernet.
These allow direct control of conveyors and other top modules with high density data transmission, eliminating the need for additional equipment such as PLCs and IPCs.
-

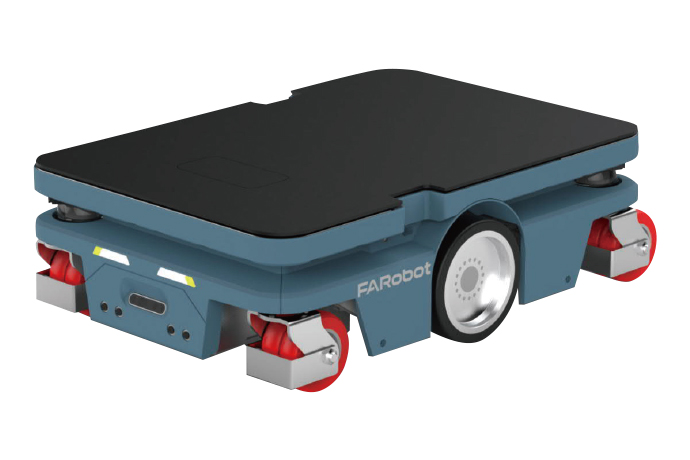

Build-in lift type
Equipped with a 70mm lift in a small housing of 870 x 600 x 272mm.
Suitable for horizontal transport by crawling under the cart.
-
Base model for top module mounting
Power type that can load up to 1,000 kg.
It also features 48V/10A and 24V/2A power supplies for the top module, 4 digital I/Os with Modbus communication and M12 Ethernet. These allow direct control of conveyors and other top modules with high density data transmission, eliminating the need for additional equipment such as PLCs and IPCs.
-
Build-in lift type
Equipped with a 70mm lift in a thin housing of 1,030 x 800 x 285mm.
Suitable for horizontal transport by crawling under the cart.
PLiBOT's products enable robots to collaborate and operate simultaneously.
