Product
Multiway pallet truck type
Ideal for flat laying and horizontal movement of pallets. It can transport loads from 1,500kg to 2,000kg.
Photo Gallery & Movie
-
Multiway X1
-
We Front X20
-
WeFront X20S
Multiway pallet truck type Datasheet

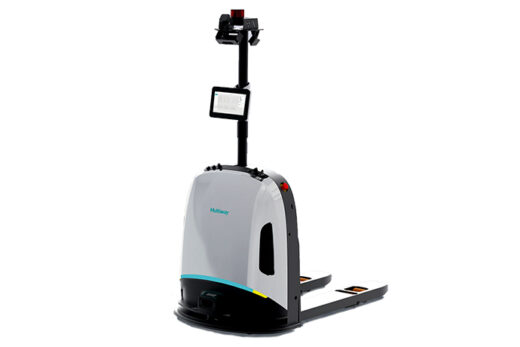

Multiway X1
| Pallet type | EURO pallet * |
|---|---|
| Navigation | Laser SLAM |
| Communication | Wi-Fi ● / 5G ○ |
| Rated load | 1,500 kg |
| Body size | 1,600×850×1,940 mm |
| Turning radius | 1,308 mm |
| Aisle width | 2,200 mm |
| Maximum lifting height | 210 mm |
| Vehicle weight | 380 kg |
| Driving performance | forward, backward, turning |
| Running speed | 1.2 m/s |
| Positioning accuracy | ±5 mm |
| Stop angle accuracy (°) | ±1 |
| Standard capacity (battery) | 50Ah |
| Pallet position detection | ○ |
| Barcode/RFID reading | — |
● Standard ○ Optional – None
Made-to-order for your project needs
WeFront X20
| Pallet type | EURO pallet * |
|---|---|
| Navigation | Laser SLAM |
| Communication | Wi-Fi ● / 5G ○ |
| Rated load | 2,000 kg |
| Body size | 1,650×800×1,900 mm |
| Turning radius | 1,315 mm |
| Aisle width | 2,300 mm |
| Maximum lifting height | 210 mm |
| Vehicle weight | 365 kg |
| Driving performance | forward, backward, turning |
| Running speed | 1.3 m/s |
| Positioning accuracy | ±5 mm |
| Stop angle accuracy (°) | ±1 |
| Standard capacity (battery) | 30Ah |
| Pallet position detection | ○ |
| Barcode/RFID reading | ○ |
● Standard ○ Optional – None
Made-to-order for your project needs
WeFront X20S
| Pallet type | EURO pallet *,Japan pallet *,Nine-legged pallet |
|---|---|
| Navigation | Laser SLAM |
| Communication | Wi-Fi ● |
| Rated load | 2,000 kg |
| Body size | 1,837×830×(1,940/2,140/2,340) mm |
| Turning radius | 1,594 mm |
| Maximum lifting height | 205 mm |
| Vehicle weight | 450 kg |
| Driving performance | forward, backward, turning |
| Running speed | 1.3 /1.5 m/s |
| Positioning accuracy | ±10 mm |
| Stop angle accuracy (°) | ±1 |
| Standard capacity (battery) | 40Ah |
| Pallet position detection | ● |
● Standard ○ Optional – None
Made-to-order for your project needs

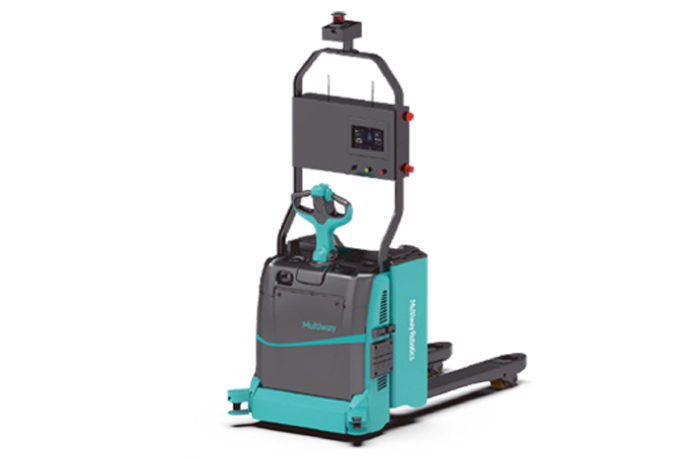

MW-T20
| Pallet type | EURO pallet * |
|---|---|
| Navigation | Laser SLAM |
| Communication | Wi-Fi ● / 5G ○ |
| Rated load | 2,000 kg |
| Body size | 2,000×950×2,300 mm |
| Turning radius | 1,860 mm |
| Aisle width | 2,900 mm |
| Maximum lifting height | 210 mm |
| Vehicle weight | 900 kg |
| Driving performance | forward, backward, turning |
| Running speed | 1.66 m/s |
| Positioning accuracy | ±5 mm |
| Stop angle accuracy (°) | ±1 |
| Standard capacity (battery) | 200Ah |
| Pallet position detection | ○ |
| Barcode/RFID reading | ○ |
● Standard ○ Optional – None
Made-to-order for your project needs
PLiBOT's products enable robots to collaborate and operate simultaneously.
