Multiway pallet stacker type
Ideal for moving pallets and loading onto racks. It can transport packages from 1,400kg to 2,000kg.

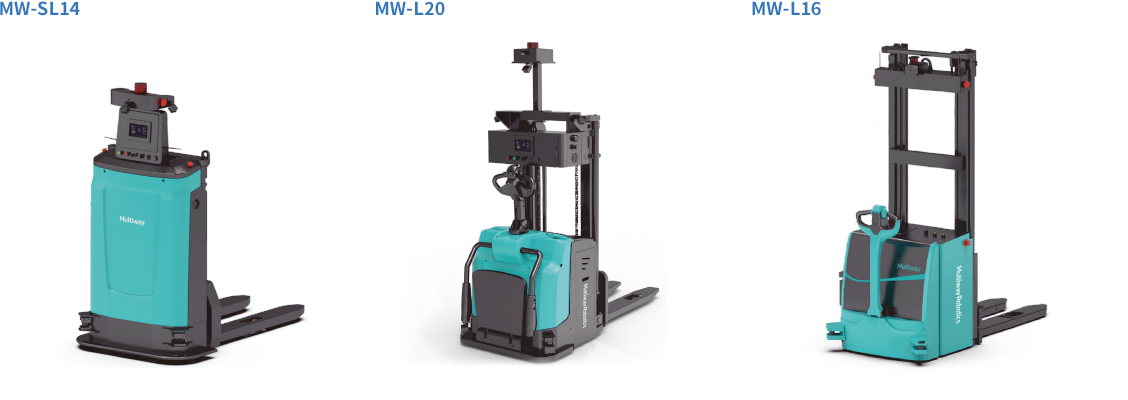

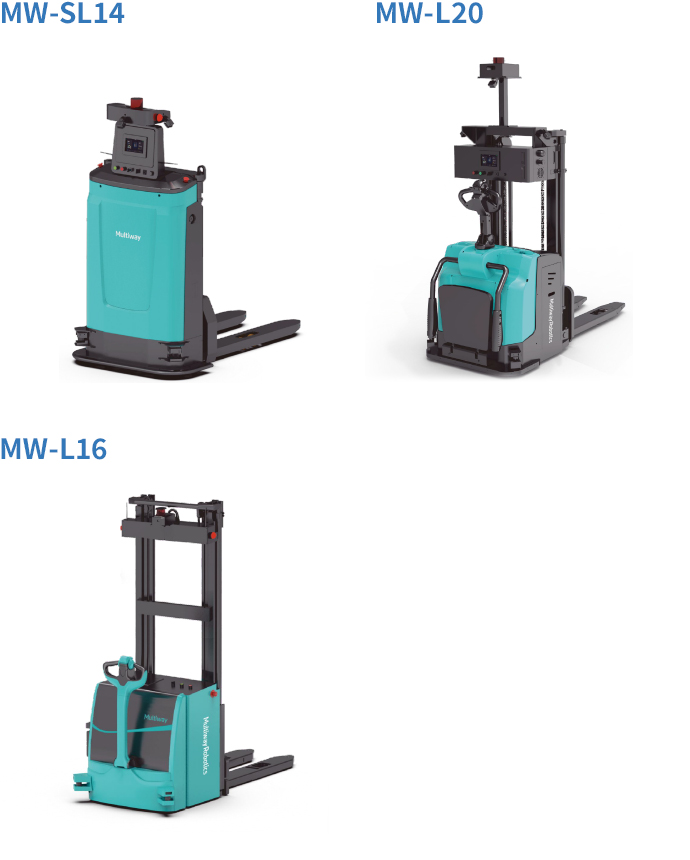

Photo Gallery & Movie
-

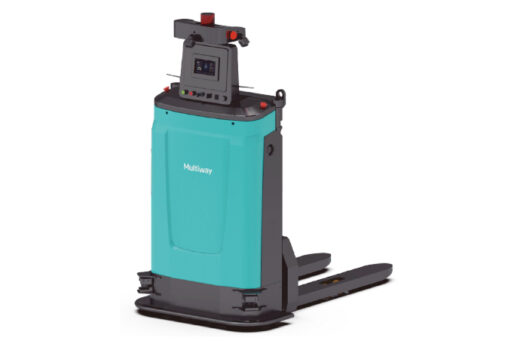

MW-SL14
-
MW-L20
Multiway pallet stacker type Datasheet
MW-SL14
| Pallet type | EURO pallet * |
|---|---|
| Navigation | Laser SLAM |
| Communication | Wi-Fi ● / 5G ○ |
| Rated load | 1,400 kg |
| Body size | 1,715×1,010×2,300 mm |
| Turning radius | 1,140 mm |
| Aisle width | 2,300 mm |
| Maximum lifting height | 2,500 mm |
| Vehicle weight | 940 kg |
| Driving performance | forward, backward, turning |
| Running speed | 1.38 m/s |
| Positioning accuracy | ±5 mm |
| Stop angle accuracy (°) | ±1 |
| Standard capacity (battery) | 200Ah |
| Pallet position detection | ○ |
| Barcode/RFID reading | ○ |
● Standard ○ Optional – None
Made-to-order for your project needs

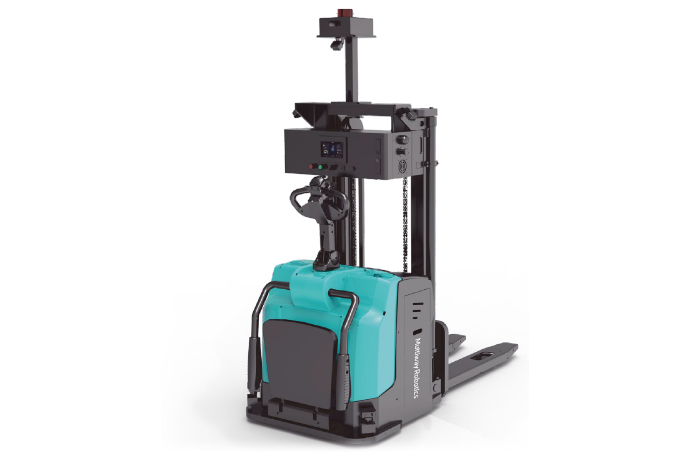

MW-L20
| Pallet type | EURO pallet * |
|---|---|
| Navigation | Laser SLAM |
| Communication | Wi-Fi ● / 5G ○ |
| Rated load | 2,000 kg |
| Body size | 2,050×970×2,300 mm |
| Turning radius | 1,800 mm |
| Aisle width | 2,800 mm |
| Maximum lifting height | 3,000 mm |
| Vehicle weight | 1,350 kg |
| Driving performance | forward, backward, turning |
| Running speed | 1.5 m/s |
| Positioning accuracy | ±5 mm |
| Stop angle accuracy (°) | ±1 |
| Standard capacity (battery) | 200Ah |
| Pallet position detection | ○ |
| Barcode/RFID reading | ○ |
● Standard ○ Optional – None
Made-to-order for your project needs

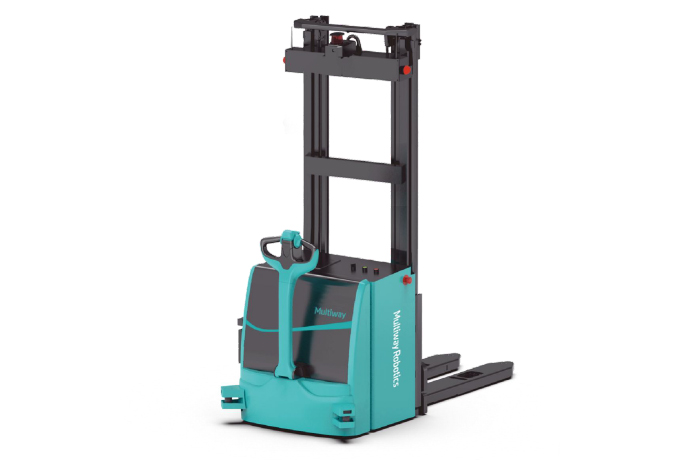

MW-L16
| Pallet type | EURO pallet * |
|---|---|
| Navigation | Laser SLAM |
| Communication | Wi-Fi ● / 5G ○ |
| Rated load | 1,600 kg |
| Body size | 2,030×950×2,300 mm |
| Turning radius | 1,660 mm |
| Aisle width | 2,900 mm |
| Maximum lifting height | 3,000 mm |
| Vehicle weight | 1,300 kg |
| Driving performance | forward, backward, turning |
| Running speed | 1.66 m/s |
| Positioning accuracy | ±5 mm |
| Stop angle accuracy (°) | ±1 |
| Standard capacity (battery) | 200Ah |
| Pallet position detection | ○ |
| Barcode/RFID reading | ○ |
● Standard ○ Optional – None
Made-to-order for your project needs
PLiBOT's products enable robots to collaborate and operate simultaneously.
