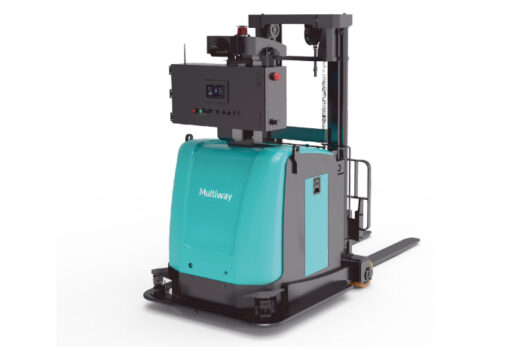

Multiway counterbalance type
It is suitable for moving pallets loaded with heavy loads and loading onto racks.
It can transport loads from 1,500kg to 3,500kg.
Photo Gallery & Movie
-

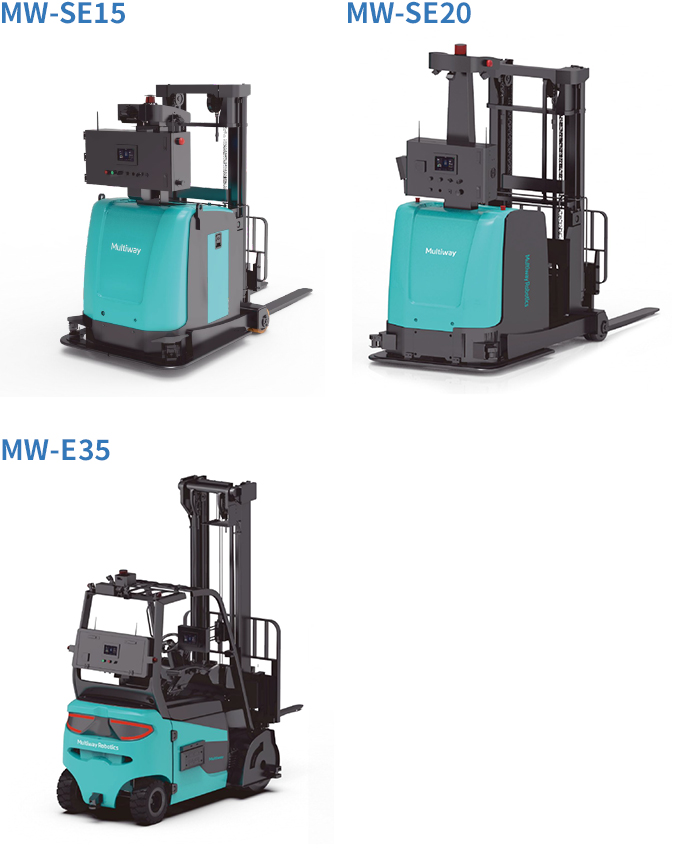

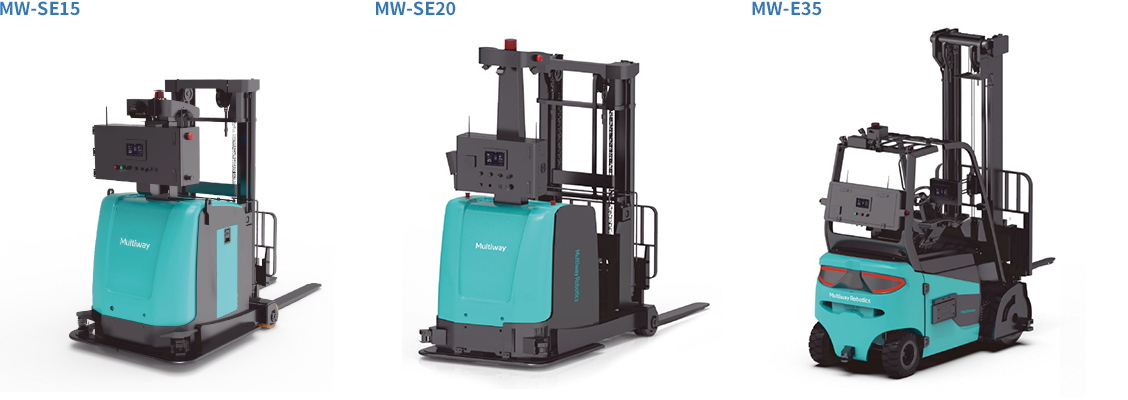

MW-SE15
-
Case Studies (cold chain industry)
Multiway counterbalance type Datasheet
MW-SE15
| Capable Carrier | Japan pallet, EURO pallet * |
|---|---|
| Navigation | SLAM |
| Communication | Wi-Fi/ 5G |
| Rated Load | 1,500 kg |
| Dimensions L×W×H |
2,500×1,145×1,950 mm |
| Turning Radius | 1,365 mm |
| Aisle Width | 3,150 mm |
| Lifting | 3,000 mm |
| Service Weight | 2,800 kg |
| Driving Mode | Forward, reverse, arc |
| Travel Speed | 1.5 m/s |
| Position Accuracy | ±10 mm |
| Angular Accuracy | ±1° |
| Run Time | 6-8h |
| Pallet Position Detection | ● |
| Barcode/RFID Reader/Optical Communication | ○ |
● Standard ○ Optional — Not Available
The dimensions can be customized to satisfy project requirement

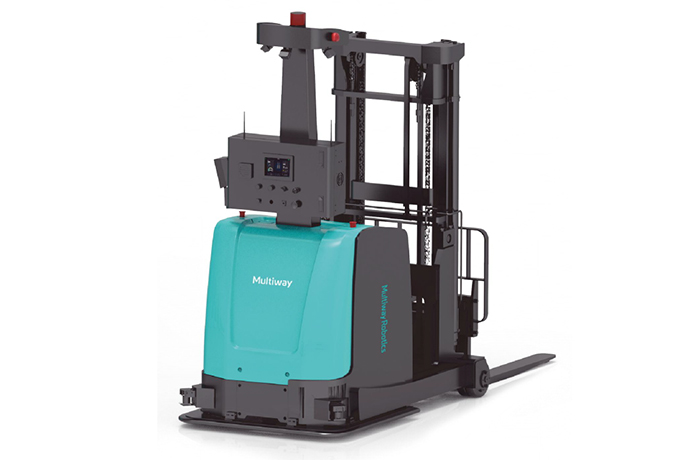

MW-SE20
| Capable Carrier | Japan pallet, EURO pallet * |
|---|---|
| Navigation | SLAM |
| Communication | Wi-Fi/ 5G |
| Rated Load | 2,000 kg |
| Dimensions L×W×H |
2,950×1,145×1,950 mm |
| Turning Radius | 1,800 mm |
| Aisle Width | 3,600 mm |
| Lifting | 4,500 mm |
| Service Weight | 3,150 kg |
| Driving Mode | Forward, reverse, arc |
| Travel Speed | 1.5 m/s |
| Position Accuracy | ±10 mm |
| Angular Accuracy | ±1° |
| Run Time | 6-8h |
| Pallet Position Detection | ● |
| Barcode/RFID Reader/Optical Communication | ○ |
● Standard ○ Optional — Not Available
The dimensions can be customized to satisfy project requirement

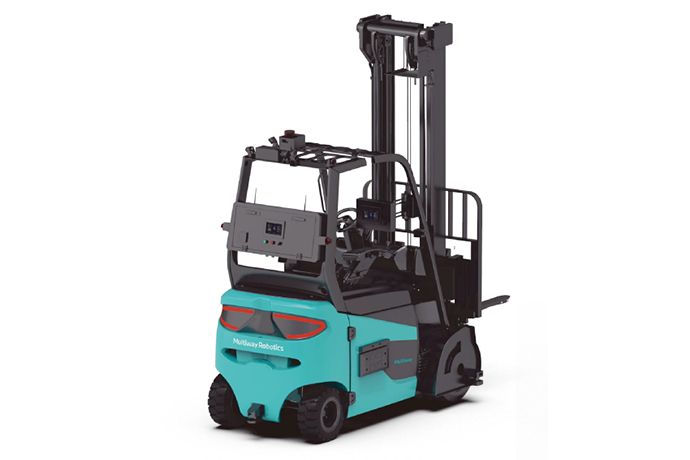

MW-E35
| Capable Carrier | Japan pallet, EURO pallet * |
|---|---|
| Navigation | SLAM |
| Communication | Wi-Fi/ 5G |
| Rated Load | 3,500 kg |
| Dimensions L×W×H |
3,585x1,580x2,350 mm |
| Turning Radius | 2,140 mm |
| Aisle Width | 4,260 mm |
| Lifting | 3,000 mm |
| Service Weight | 5,700 kg |
| Driving Mode | Forward, reverse, arc |
| Travel Speed | 2.5 m/s |
| Position Accuracy | ±10 mm |
| Angular Accuracy | ±1° |
| Run Time | 8-10h |
| Pallet Position Detection | — |
| Barcode/RFID Reader/Optical Communication | ○ |
● Standard ○ Optional — Not Available
The dimensions can be customized to satisfy project requirement
PLiBOT's products enable robots to collaborate and operate simultaneously.
Sales are basically limited to Japan.
