PLiBOT Gen.2 solves
on-site challenges in a variety of fields,
including manufacturing, logistics, and construction.
-
You want to automate and unmann our factories, but we have a limited budget and don't know where to start.

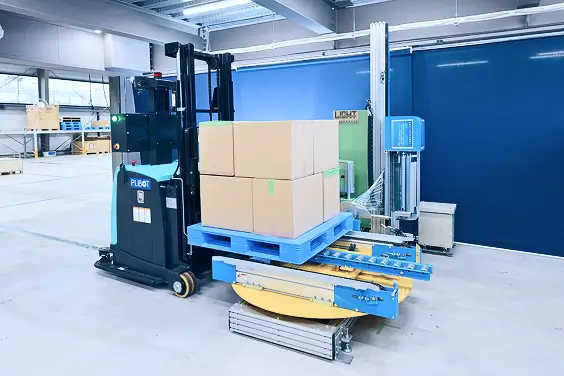

Accommodates gradual expansion while utilizing current facilities
PLiBOT Gen.2's ability to link different control standards makes it possible to utilize existing robots and automated machinery assets while introducing new robots and automated equipment in order of priority, allowing for gradual development.
Another benefit is its high future scalability, allowing for flexible adoption of new models as they emerge. For customers who are unsure where to start with automation and unmanned operations, we can propose ideal solutions starting from the implementation planning level.
-
You want to combine and operate robots that are best suited to our company, regardless of manufacturer.

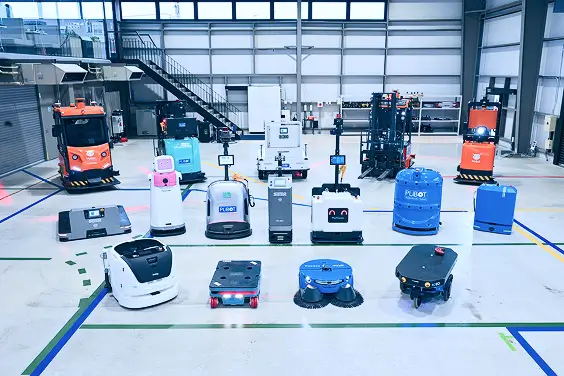

You can freely choose the robots and equipment that best suit your purpose and application.
You can freely choose and directly purchase robots and equipment with different control standards, regardless of manufacturer, whether domestic or international. We also have a centralized consultation desk for when problems with robots or equipment occur, reducing the hassle of responding to inquiries.
Robots can be connected to each other by integrating their respective MAPs. Not only can you combine and use models that are best suited to your company, but you can also manufacture and introduce custom-made autonomous mobile robots (AMRs) according to your needs.
-

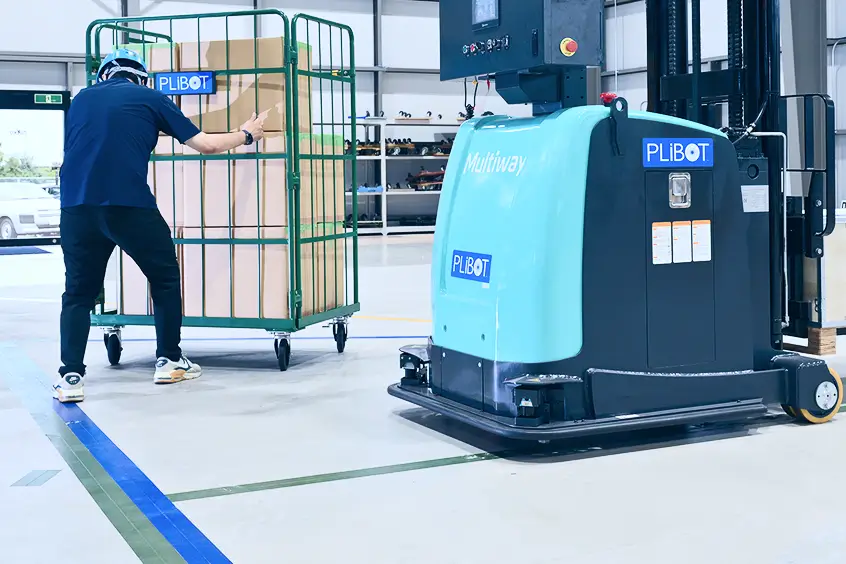

You would like to introduce AMR (autonomous mobile robots) to the floor where people work.

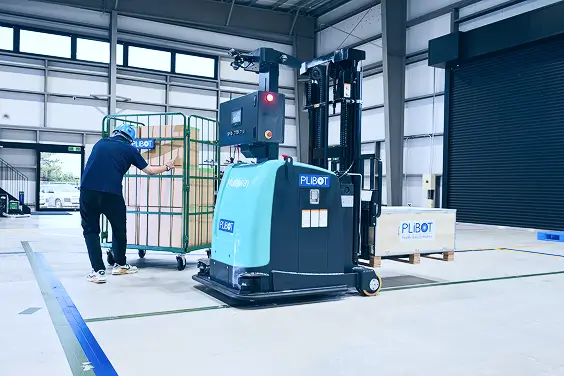

Building a world-class safe collaborative environment between humans and robots
The autonomous mobile robots (AMR) that can be selected when introducing new products are primarily those that comply with the international safety standard ISO 3691-4 (JIS D6802:2022). Safety laser scanners prevent collisions with people, and safety encoders and safe motion controllers monitor speed, direction of rotation, and other factors. What's more, a check system can be established by connecting remote monitoring devices, allowing robots to be incorporated into existing lines while taking multifaceted safety measures.
-
You want to centralize the control of robots and industrial equipment, and also link it with inventory management systems.
Possible to link data with existing systems
By using APIs (Application Programming Interfaces) that link with higher-level systems, it is possible to connect and link data with existing production management systems (PMS), enterprise resource planning (ERP), customer relationship management (CRM), etc. Data can be provided to systems currently in use within the company, which can lead to improved efficiency across departments.
-
It is difficult to learn how to operate the robots, and the tasks are highly dependent on the individual.

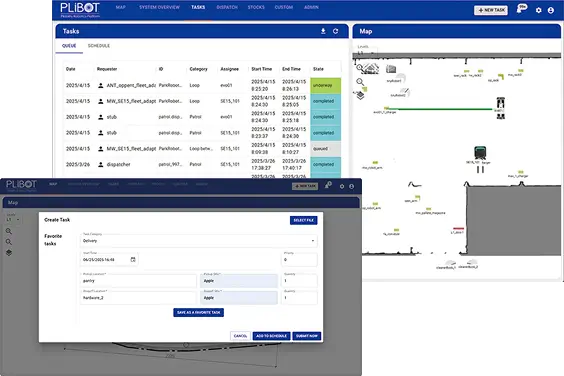

Anyone can easily operate and control multiple robots in a centralized manner.

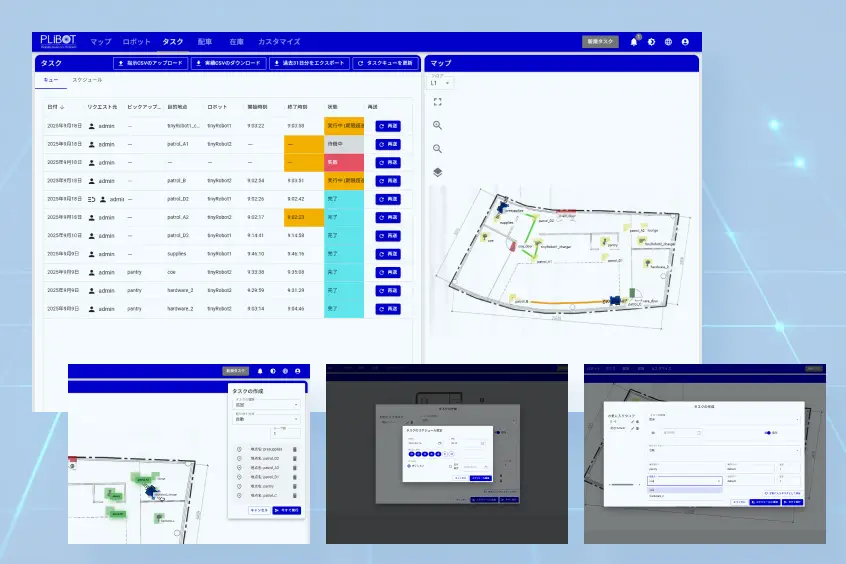

The operation screen, accessible from a PC or tablet, is designed to be easy for anyone to use. It is also customizable to suit the modules being used. Due to differences in manufacturers and control standards, each robot was often operated by a person familiar with its operation. However, this allows for centralized operation and control, which reduces manpower and labor.

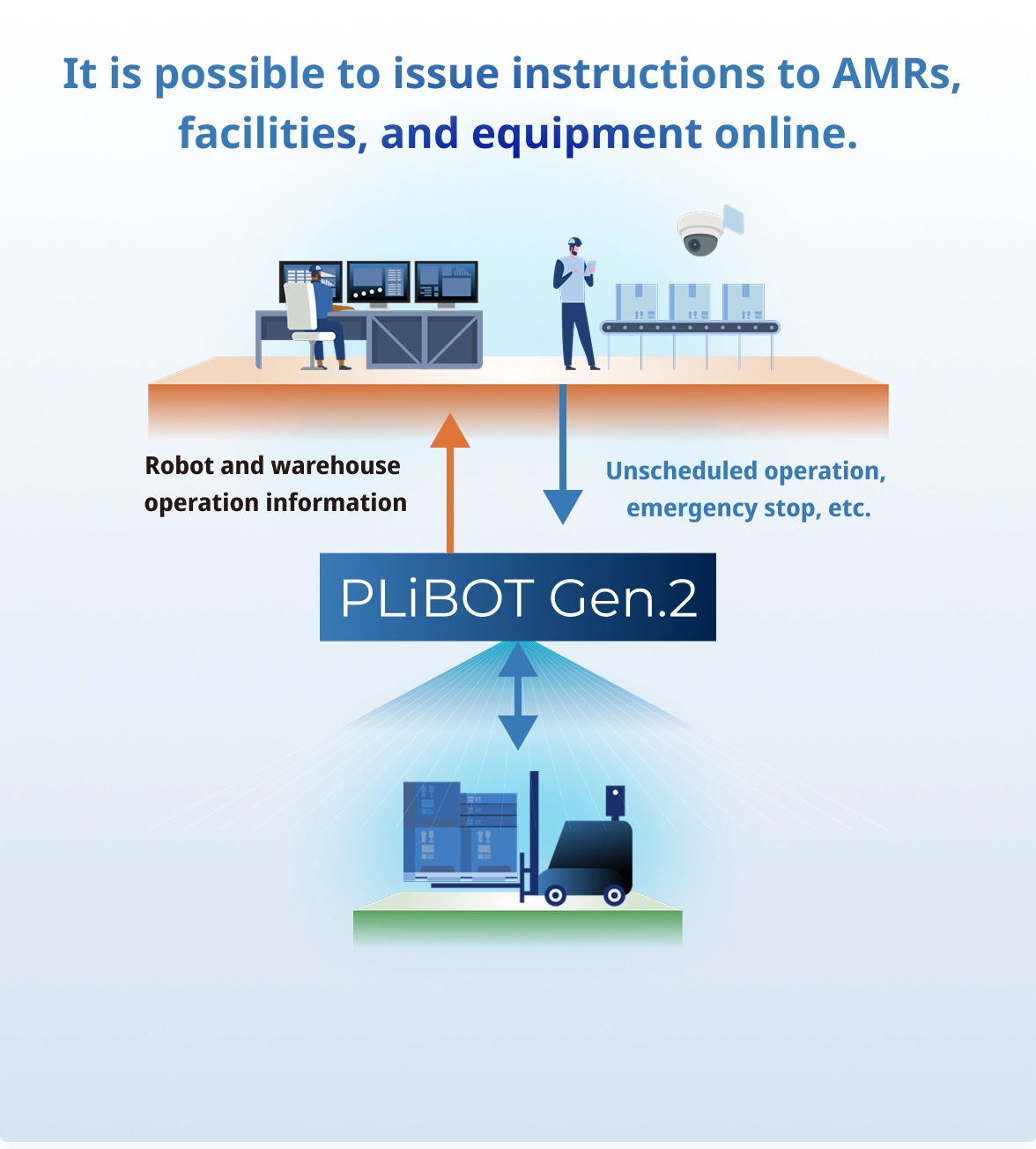

The world that PLiBOT Gen.2 will realize
PLiBOT Gen.2 Collaboration demonstration video
We also provide world-class AMRs that work in
conjunction with your existing robot systems.
We have formed a business ecosystem
with over 40 companies both in Japan and overseas,
and can also propose combinations with partner products.
Please feel free to contact us.

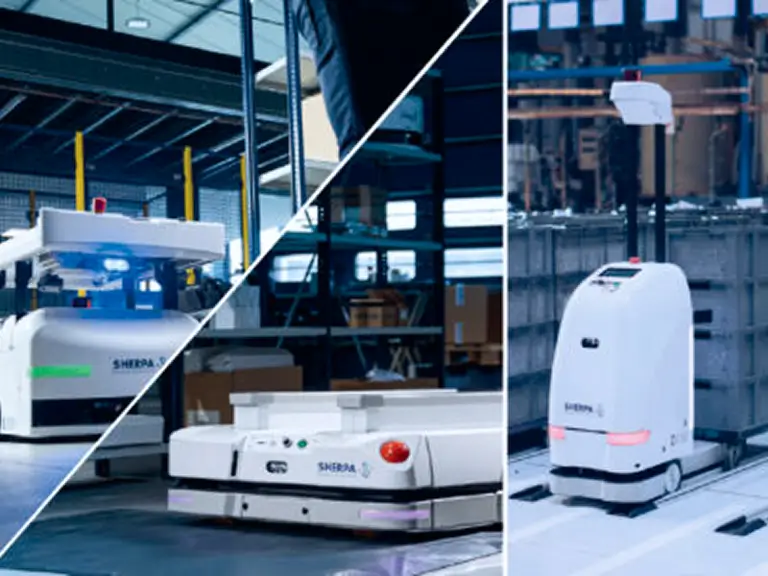

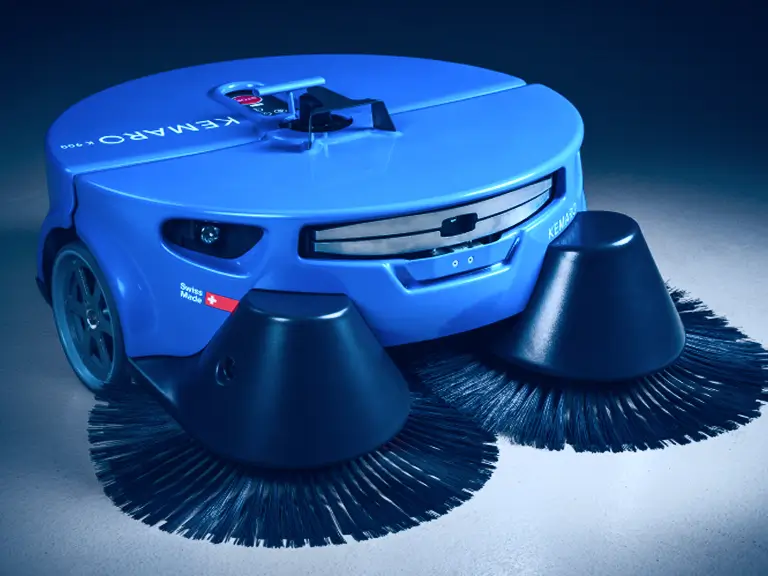

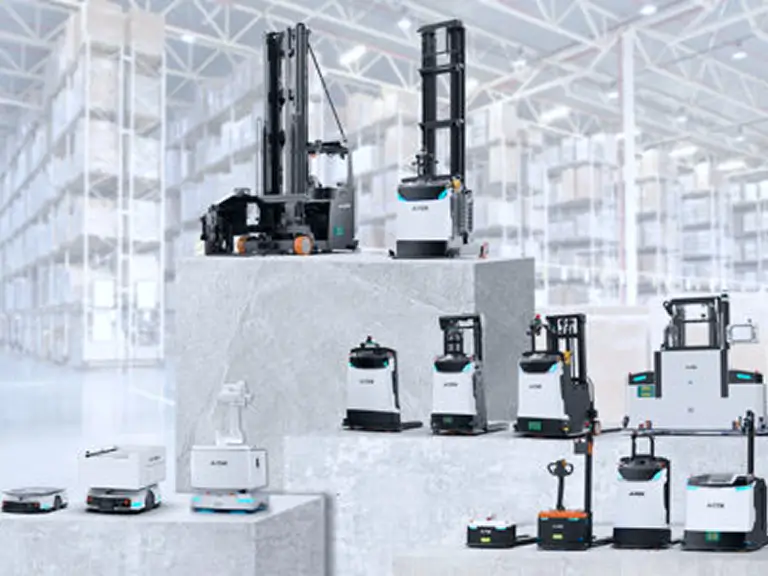

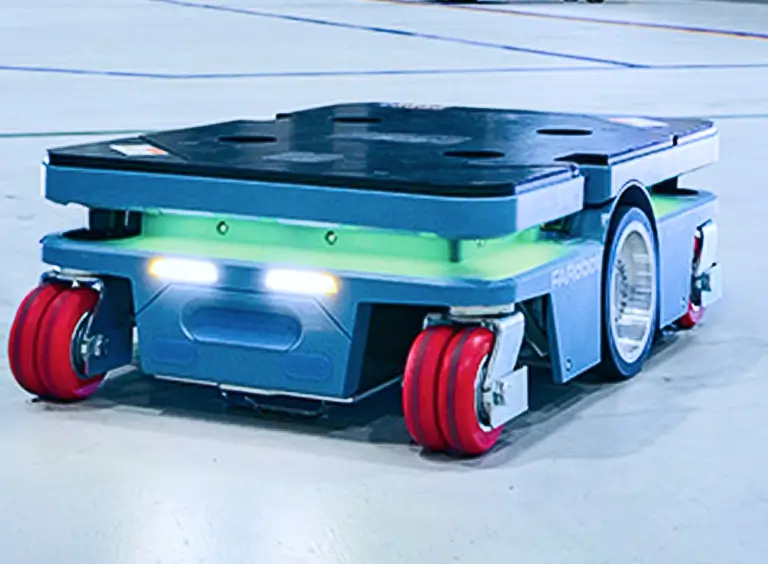

Manufacturers we deal with
PLiBOT Gen.2 provides
optimal connectivity for your current environment
Do you have a transporter?
Yes
We will adapt it for you.
If the machine is not yet automated, we will select a controller and sensor and install them on the conveyor.
- CONTROLLER
-
If it is automated, we create an API depending on the communication protocol and navigation system used.
- API
-
- REST API
- TCP/IP
- PLC
- ROS
- UDP
Are you currently remotely monitoring your equipment?
Yes
Easy to connect to your SCADA
-
- Field devices
-
sensors and actuators
-
- RTU/PLC
(Field Control Device) -
Data Acquisition
Control Logic Execution
- RTU/PLC
-
- Communications Infrastructure
-
Wired/Wireless Industrial Protocols
Examples
Modbus OPC-UA MQTT
No
Full support for collaborative work
-
On-site
equipment
survey and
requirements definition -
Adapter design/
Determining
communication method -
Introducing
remote control
hardware（IoT gateways,
I/O modules, etc.） -
SCADA
integration/
connection test -
Dashboard
construction and
monitoring item
definition -
Start of
operation +
Establishment
of support
system
Is it possible to implement it using API?
Yes
By providing an API development environment, customers can create and implement their own
-
Providing an
API development
environment -
-
Customers
implement API
integration
functions -
Small test
connection -
To the production
connection and
operation phase
No
We can customize it to your specifications.
-
Check connection
requirements
and adjust
specifications -
Interface design（data structure/protocol）
-
Implementation
of gateway/
API integration
functions -
Small Test
Connection -
To the production
connection and
operation phase
PLiBOT Gen.2 solves
a variety of issues with one touch!
Achieve automation,
labor savings, and cost reduction!
Use Case
-
Packaging machine manufacturer Production equipment integration and pallet supply automation
PLiBOT Gen.2 integrates the loading and unloading of multiple production machines and the supply of empty pallets, which was previously done manually.
Automated Warehouse
Customize and connect with APIs, and deliver to destination based on shipping instructions

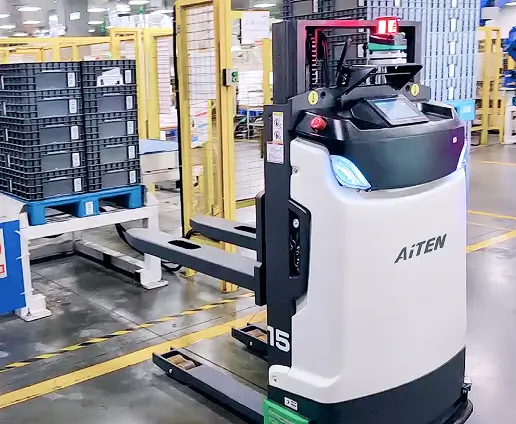

Automatic doors and
electric conveyorsConnect the production PLC and PLiBOT_PLC with a simple PLC link

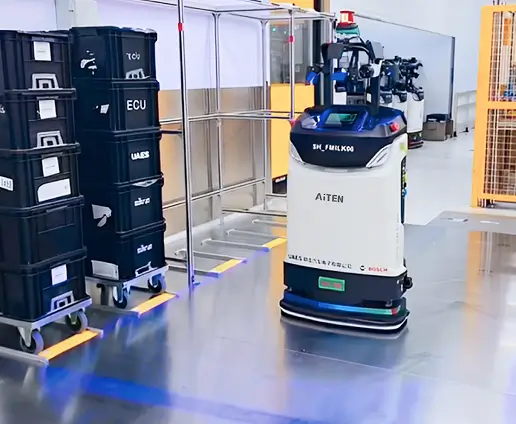

Supplying empty pallets
Calculates fork height based on values obtained from the 2DLider laser distance meter and sends instructions to the AMR
Automate everything from material replenishment to moving to the shipping area
-
Medical device manufacturer Integration of production line and low-floor AMR
- Automated transport using the production line and low-floor AMR
- Items transferred via the double conveyor are linked to the double conveyor built into the AMR
- PLC input from the production line to PLiBOT Gen.2 automatically triggers tasks
- Manual shutters are installed along the travel path
-
W Conveyor
We manufacture and assemble conveyors to your specifications.
-
Automatic Doors
Network non-remote-controlled doors with our partners and connect and control them with PLiBOT Gen.2
-
Linking with the production line
All inputs from the line are handled by the PLC, and conveyor linkages that automatically start tasks are handled via 8-bit sensors and processed by the AMR edge device.
AMR equipped with a double conveyor for fully automatic transfer and transportation
-
Manufacturer Automatic loading onto trucks
- PLiBOT Gen.2 controls fully automated truck loading, which has been difficult to automate.
- Shipping data is linked to a host system, reducing data entry work.

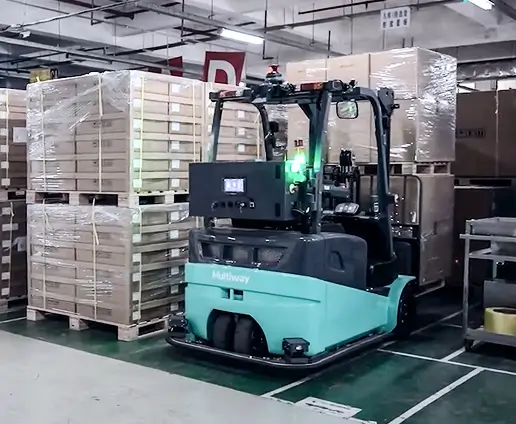

Shipping area
Identify your parcel according to shipping instructions.

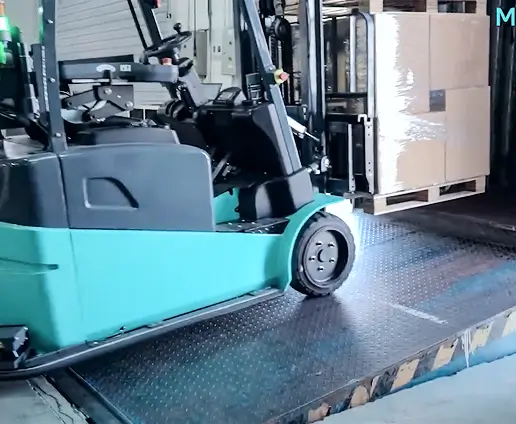

Getting onto a truck
Distinguishing between different truck heights

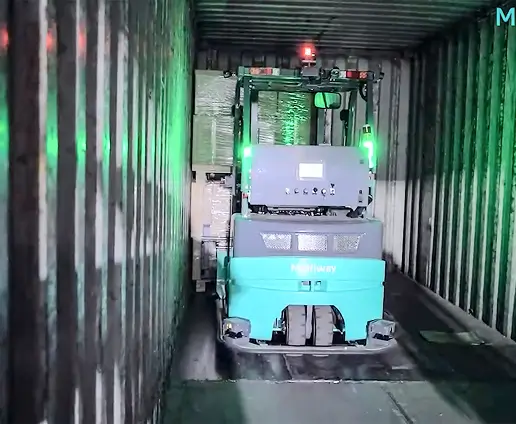

Loading onto trucks
Load from the back according to the shape of the truck
Automate everything from the shipping area to loading onto trucks
-
Material handling manufacturer Visual control of complex industrial machinery
- PLiBOT Gen.2 controls fully automated truck loading, which has been difficult to automate.
- Shipping data is linked to the host system, reducing data entry work.

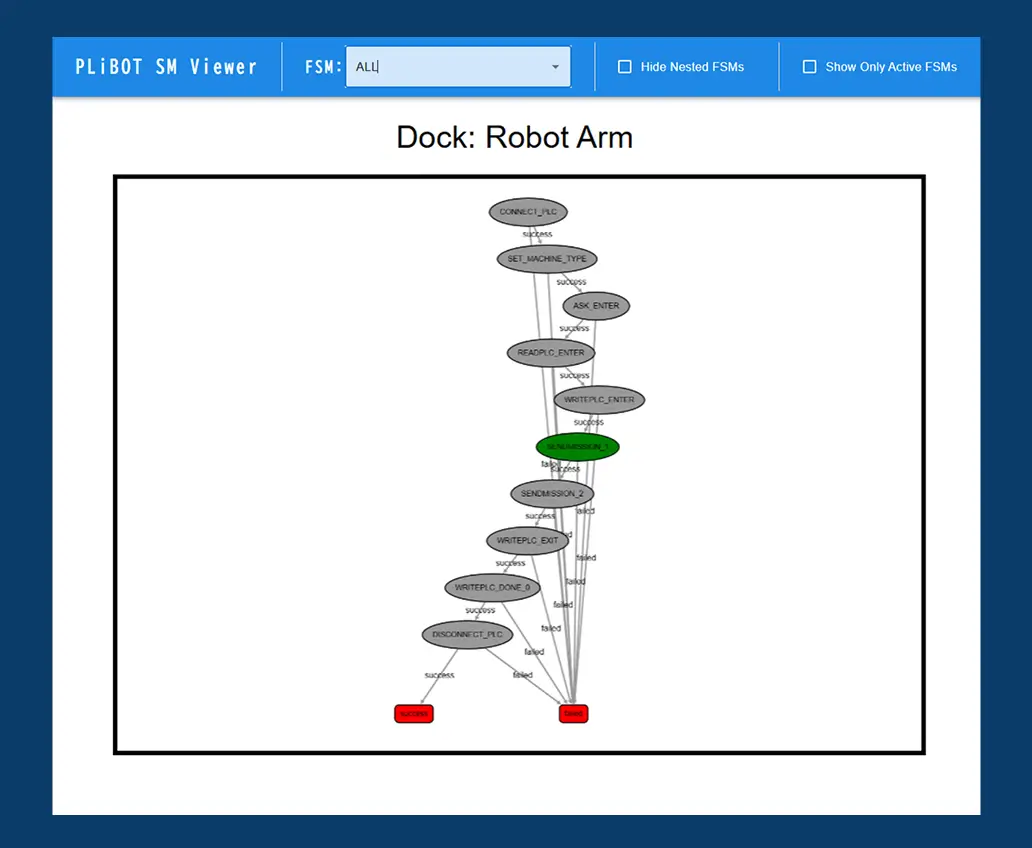

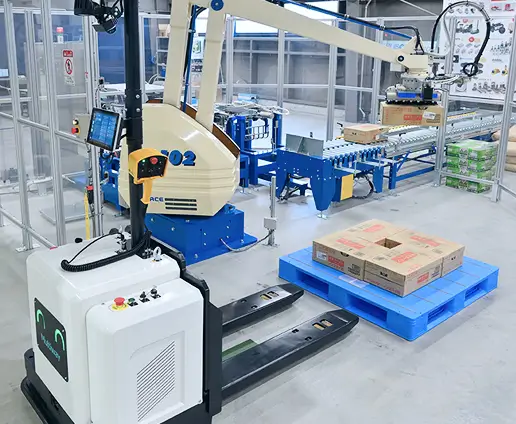

State Machines
- Use state machines for integration with industrial machinery and control with conditional branching.
- Even complex flows can be visually and intuitively checked online.
Seamless integration with industrial machinery such as robot arms
-
Controller Implements the equipment required for automatic transport

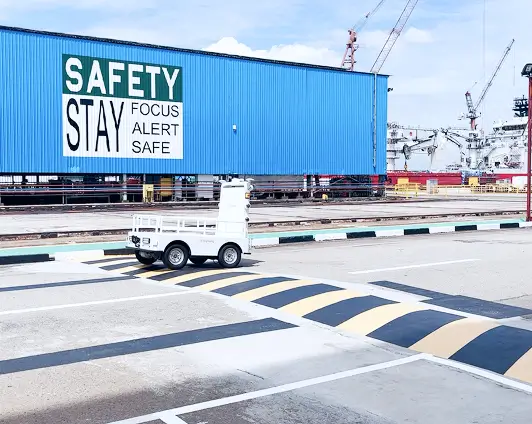

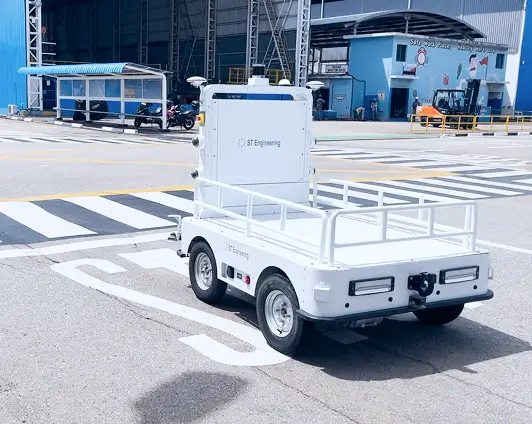

Contract development of automated conveyors
Customization
- Controller and sensor installation
- Integration with other AMRs/equipment via PLiBOT Gen.2

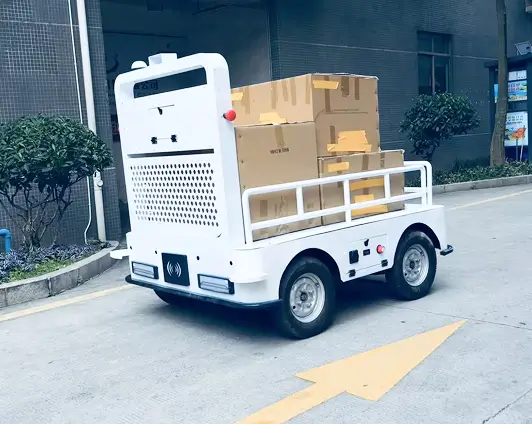

Customize a remote-controlled cart to drive automatically
