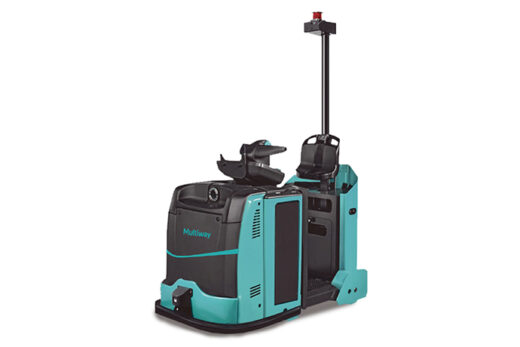

Multiway indoor tugger type MW-ISP50

Multiway indoor tugger type MW-ISP50

It is possible to tow heavy loads with wheels such as wheeled trolleys and basket trolleys.
It can carry loads up to 5,000kg.

Document download

Specifications

Pallet type
Navigation Laser SLAM
Communication Wi-Fi ● / 5G ○
Rated load 5,000 kg
Body size /
Turning radius 3,000 mm
Aisle width
Maximum lifting height
Vehicle weight 880 kg
Driving performance forward, backward, turning
Running speed 1.5 m/s
Positioning accuracy ±5 mm
Stop angle accuracy (°) ±1
Standard capacity (battery) 200Ah
Pallet position detection
Barcode/RFID reading

● Standard ○ Optional – None
Made-to-order for your project needs

PLiBOT's products enable robots to collaborate and operate simultaneously.
Sales are basically limited to Japan.
